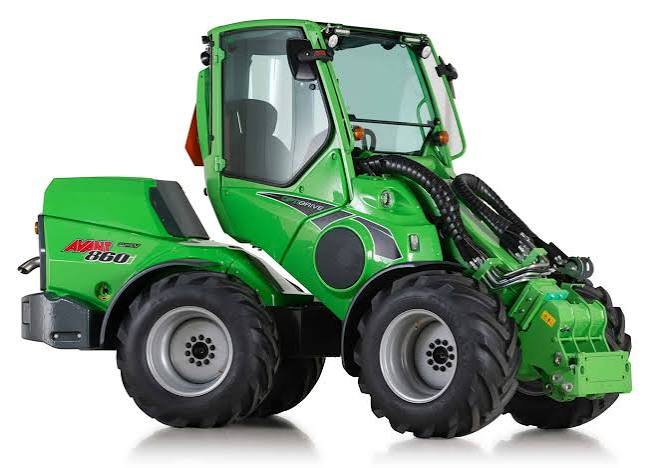

AVANT 8601 OptiDrive

The Avant 800 Series is the flagship of the Avant loader range – offering the highest lift height and greatest capacity of any model

EARTHMOVING - AVANT

  • Number Of Cylinders 3
  • Engine Make Kohler
  • Engine Model KDI 1903 TCR turbo diesel
  • Gross Power 42 kW / 56–57 hp
  • Displacement 1.861 L /  113.6 cu in
  • Operational Operating Weight 2,800 kg
  • Hydraulic Relief Valve Pressure 225 bar / 22.5 MPa / 3,260 psi
  • Hydraulic Pump Flow Capacity 80 L/min
  • Operating weight 2,690–2,800 kg cab
  • Emission EU Stage V — turbocharged common rail diesel with DOC and DPF
  • Rated Operating Load 1,900 kg.
  • Bucket breakout force at 500 mm: 2,200 kgf / approx. 21.6 kN
  • Machine width 1,490 mm
Plant Details
Description EARTHMOVING - AVANT
Make & Model AVANT 8601 OptiDrive
Year of Manufacter 2024
Serial Number 120181
Registration Number 54564E
Last Service Date
Outstanding Defects / Notes None
Suitable for intended use Yes
