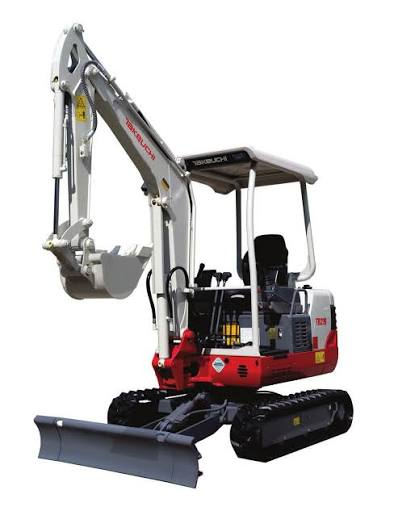

TAKEUCHI TB219

The TB219 compact mini excavator is designed for excavating in the most narrow site applications. With an operating weight of 1945/2070kg (canopy/cab) the TB219 is comfortably within trailer towing limits.

 EXCAVATOR - 2T

  • Number Of Cylinders 3
  • Engine Make Yanmar
  • Engine Model 3TNV70 diesel
  • Gross Power 12.0 kW / 16.1 hp
  • Power Measured @ RPM 2,500 rpm
  • Displacement 854 ml / 0.854 L / 52.1 cu in
  • Hydraulic Relief Valve Pressure 20.6 MPa / 2,987 psi
  • Hydraulic Pump Flow Capacity P1/P2 pump: 20.0 L/min each; P3 gear pump: 11.3 L/min; service port flow: 40.0 L/min
  • Operating weight 1,945 kg
  • Arm breakout force 11.4 kN
  • Bucket breakout force 16.0 kN
  • Machine width Retracted: 980 mm / Extended: 1,370 mm
Plant Details
Description EXCAVATOR - 2T
Make & Model TAKEUCHI TB219
Year of Manufacter 2021
Serial Number 121904938
Registration Number N/A
Last Service Date
Outstanding Defects / Notes None
Suitable for intended use Yes
